DS-6RS - Datasheet

MBA

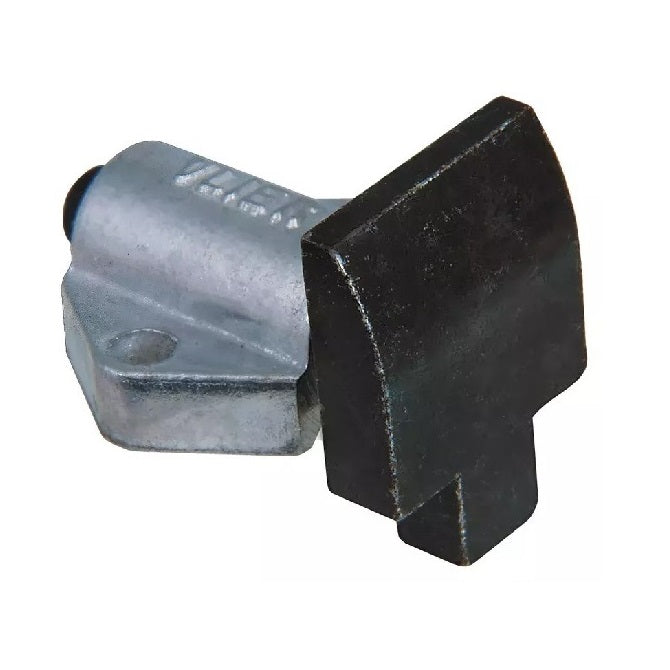

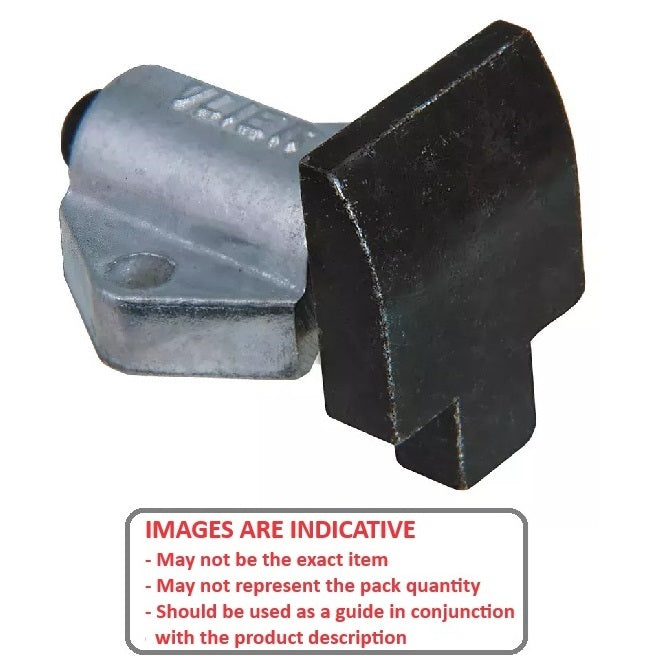

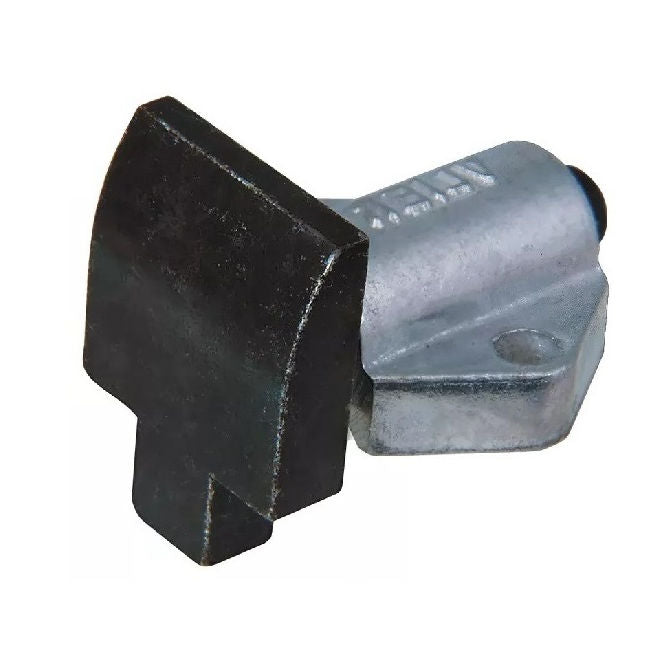

With Tang Flat Face Spring Stops. Flat faced with a tang prevents thin gauge material from sliding under plunger.

Spring stops are used extensively in the locating of parts in jigs and fixtures, particularly where fixture walls are not available.
Properly radiused nose for perfect fit with no wobble.
Plunger is case hardened low carbon steel. Aluminium body.

Initial End Force : 1.02 Kg
Final End Force 11.68 Kg
Stroke 4.76 mm
(Equiv. 0.187 in.)

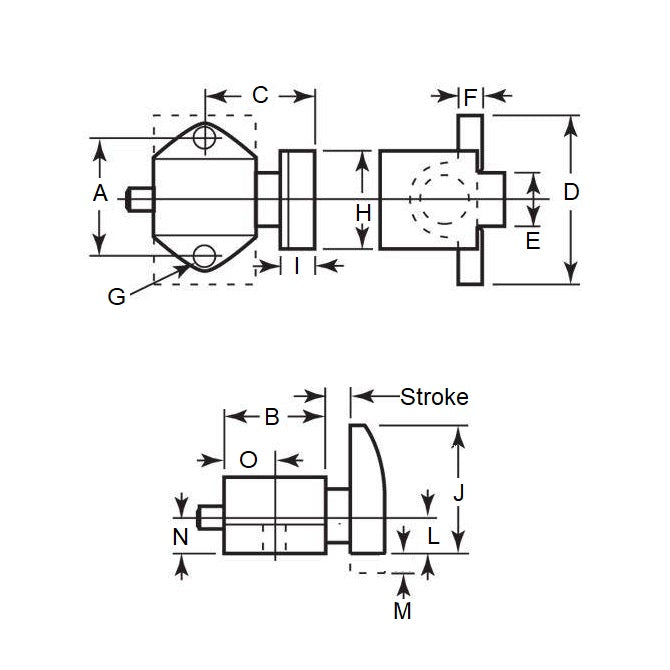

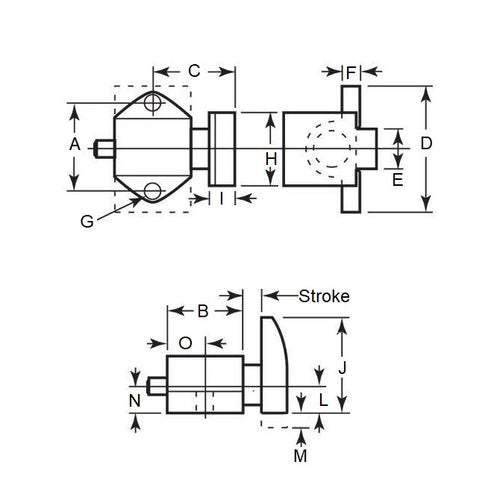

A 28.58 mm
B 25.40 mm
C 23.81 mm
D 38.10 mm
F 6.35 mm
G 5.16 mm
H 22.23 mm
E / I / J / L / M / N / O 9.53 / 6.35 / 22.23 / 7.54 / 6.35 / 7.94 / 12.70 mm
Base Style Rectangular

Country of Origin: US
