Miniature Bearings Australia
TPC-060B-P - Datasheet
MBA
Category Information
Tools - Threading - Hand Taps - Carbon SteelCarbon Steel Hand Taps Threading Tools. Carbon Steel Straight Flute Taps. Starting from M1 and 0-90 UNF. Many unusual sizes - M1.2, M1.4, M1.6, M1.7, BA Sizes, 2-56 and more. Sutton - PN - Bordo.
- An expanded range may be available on special order. Please enquire.
- Carbon steel hand taps
- Carbon Steel (CS) Hand taps.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 0BA (Approx. 6mm)
- Pitch in mm / Threads Per Inch 1.000 mm / 25.4 TPI

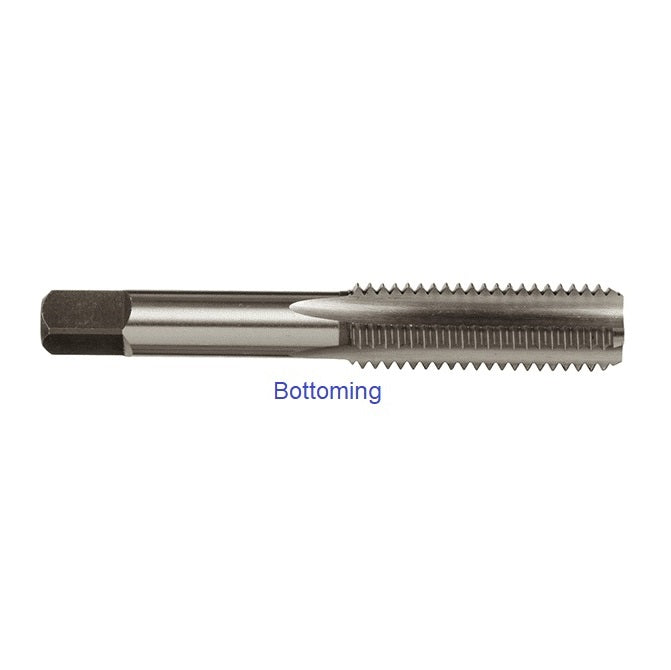

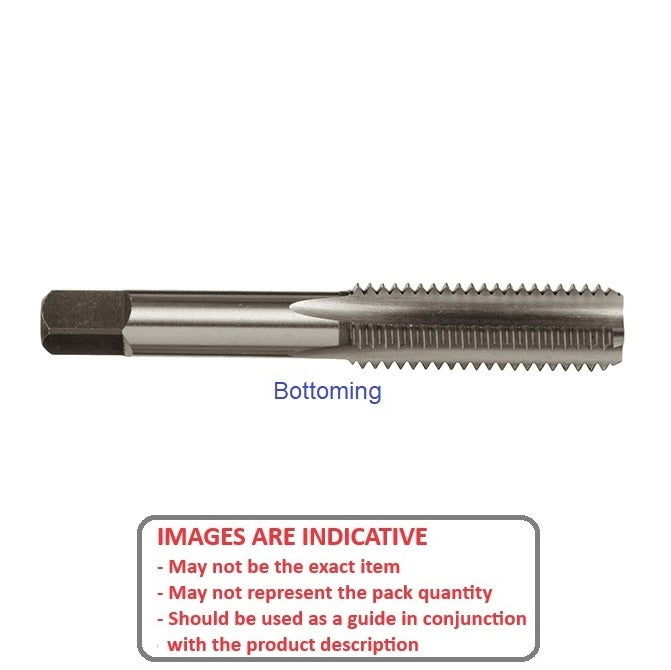

- Type Bottoming
- Drill Size Range 4.80 - 5.40 mm
- mm 5.00
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Sutton 036014
