Miniature Bearings Australia
SC012F-006-R-SL-BR - Datasheet
MBA
Category Information

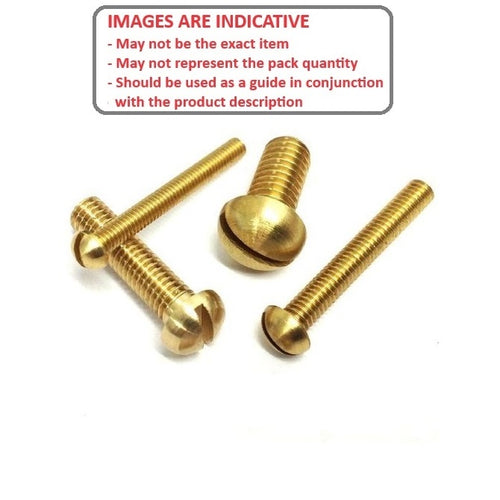

Screws - Round Head - Slotted - BrassBrass Slotted Round Head Screws. Brass metal thread machine screws BSW - UNF - UNC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 00-90 UNF (1.19mm)
- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Material Brass
- Max Head Diameter 2.26 mm
- Max Head Height 0.79 mm
- Type Round / Slotted
- Pitch 0.282 mm
- Threads Per Inch 90 TPI
- Material Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92482A227
- MicroFast RMB00904
