NT012F-HSC-BR - Datasheet
MBA
Category Information

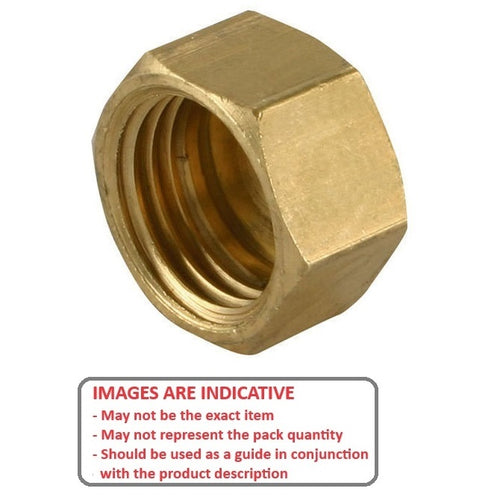

Nuts - Hexagonal - Full - BrassBrass Full Hexagonal Nuts. UNC - UNF - BA - METRIC.
- An expanded range may be available on special order. Please enquire.

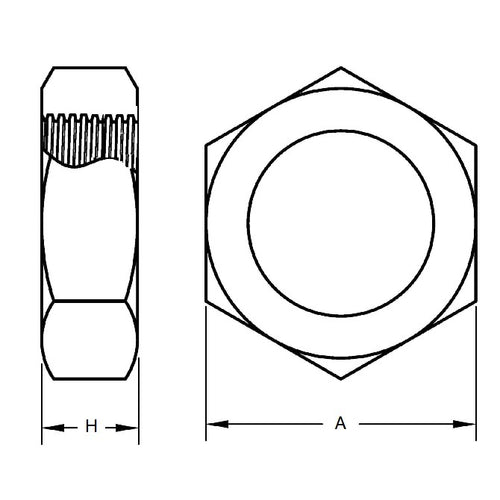

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
- Nuts marked as type SCALE have the same dimension across flats as the brass hex head screw of the same thread size.
Product Data
- Thread Size : 00-90 UNF (1.19mm)
- Thickness (H)
1.02
mm
(Equiv. 0.04 in.) - Across Flats (A/F)
1.98
mm
(Equiv. 0.078 in.) - Type Scale Hex Nut
- Pitch 0.282 mm
- Threads Per Inch 90 TPI
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- 92736A112
- MicroFast HNBS0090
