0R-00081-0300-BR385 - Datasheet

MBA

Category Information

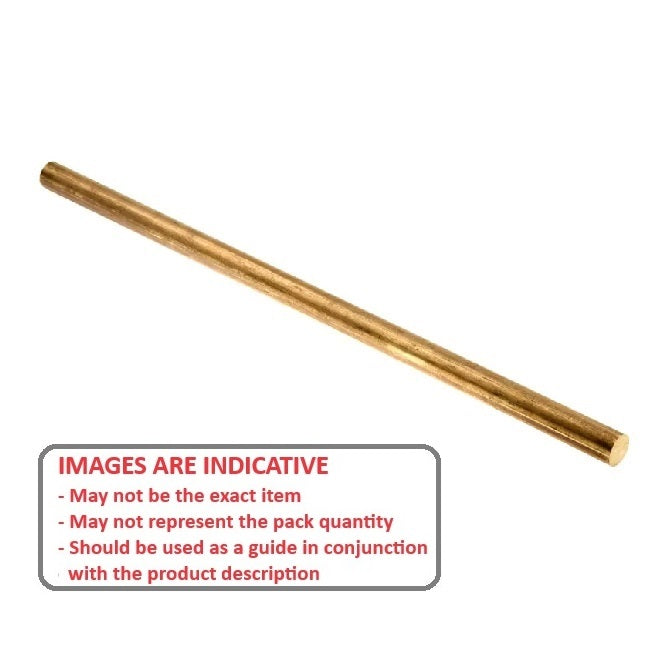

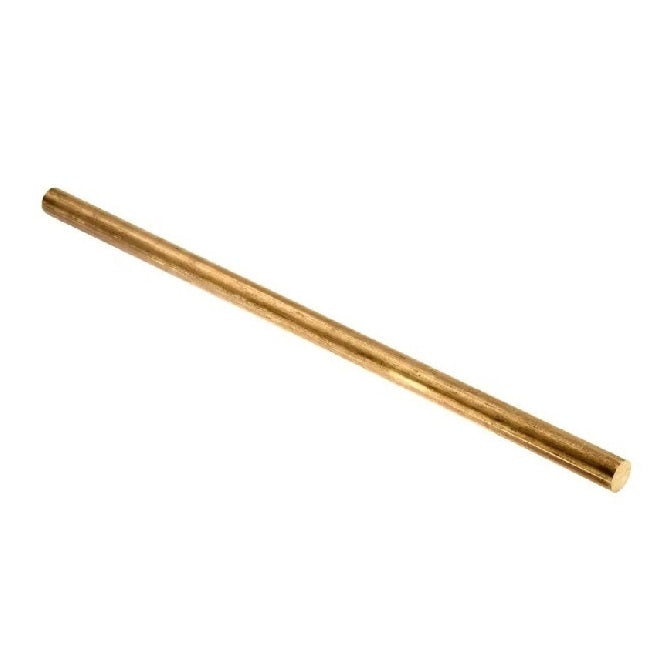

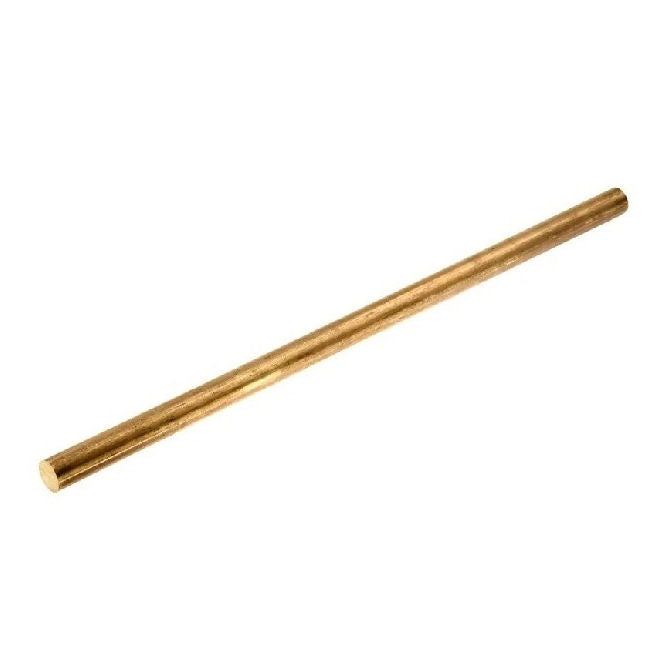

Rod - Round - Brass

Brass Round Rod. For general hobby applications.

  • An expanded range may be available on special order. Please enquire.
  • NOTE! Very thin sizes may experience some bending. They may not be straight for the entire length.
  • May be slightly oversized on OD so some reworking may be required before fitting closely mating parts such as bearings.
  • This product is not recommended for use as a bearing shaft.
  • We suggest you use items from the category - Shafting - Ground for bearing shaft.
  • Includes K&S Metals range and more

Product Data

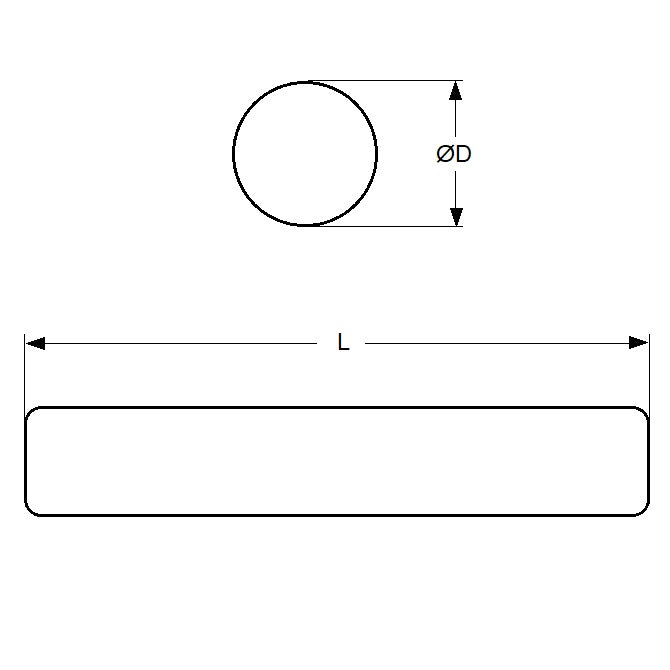

  • Nominal Diameter (D) : 0.81 mm +/- 0.025
    (Equiv. 0.032 in.)
  • Length (L) 304.8 mm +/- 1.0
    (Equiv. 12 in.)
  • Grade Gd. 385
  • Other Information Alloys 260 1/4-1/2 hard ASTM B134
  • Quantity Per Card 5
  • Material Brass 385
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KSE KS8160
