Miniature Bearings Australia
SC015F-006-B-SK-C - Datasheet
MBA
Category Information

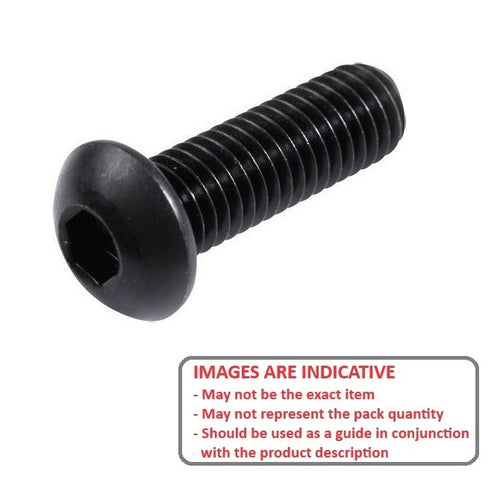

Screws - Button - Socket - Alloy SteelAlloy Steel Socket Button Screws. UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7380.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 0-80 UNF (1.52mm)
- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Material Alloy Steel
- Max Head Diameter 2.9 mm
- Max Head Height 0.8 mm
- Hex Key (D) 0.89 (0.035in.) mm
- Pitch 0.318 mm
- Threads Per Inch 80 TPI
- Material Steel Alloy
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91255A012
- MicroFast SBA0004
