SC015F-013-R-SL-S4 - Datasheet
MBA
Category Information

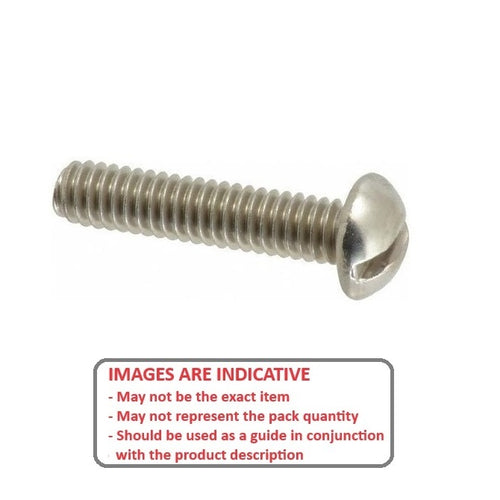

Screws - Round Head - Slotted - 304 Stainless304 Stainless Slotted Round Head Screws. Metric Only
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 0-80 UNF (1.52mm)
- Thread Length (L)
12.7
mm
(Equiv. 0.5 in.) - Material 304 Stainless
- Max Head Diameter 2.87 mm
- Max Head Height 1.35 mm
- Type Round / Slotted
- Pitch 0.318 mm
- Threads Per Inch 80 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91783A059
- Small Parts MX-080-8B
- A9X16R008008
- A9X16-R008008
- A 9X16-R008008
- MX0808B
