DDSS-008-18-M6 - Datasheet

MBA

Category Information

Dampers - Double Studded Silicone

Double Studded Silicone Dampers. Damps low frequency vibrations. Vibration dampening

  • This category will be discontinued when this item is sold.
  • The items is priced to quit.
  • Backorders or orders for previously listed items in the category may still be possible - please enquire.
  • Use for compression only.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Optimum Load : 0.8 to 2.0 kg
  • Resonance Point 14 to 12 Hz
  • Resonance Magnification 13 to 12 dB
  • Recommended Frequency 20.00 Hz
  • Body Height (h) 18.00 mm
  • Body End Dia. (d1/d2) 20 ~ 25 mm
  • Thread M6
  • Thread Length (e) 20.00 mm
  • Stud Material Brass Nickle Plate
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • A10Z61MTHC
    View full details

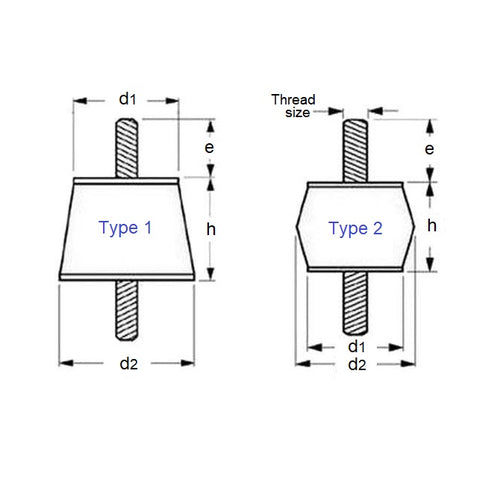

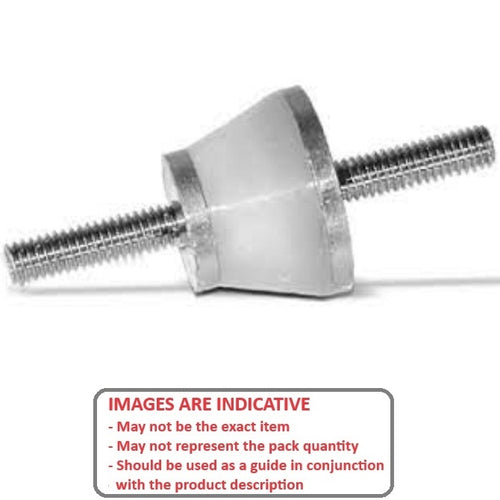

    DDSS-008-18-M6DiagramDDSS-008-18-M6Image
