Miniature Bearings Australia
SHM-0635-0150-0300-430 - Datasheet
MBA
Category Information

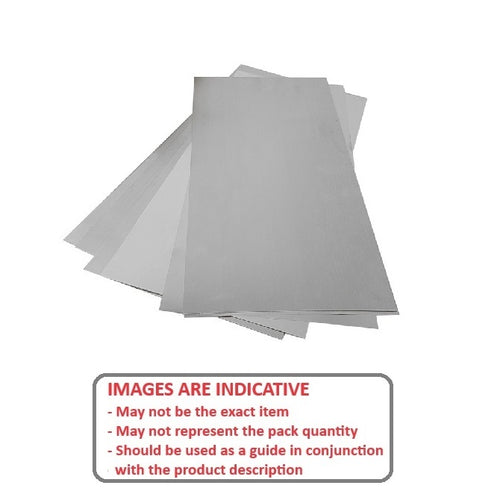

Shim and Foil - Stainless SteelStainless Steel Shim and Foil. Precision stainless shim sheet, roll and strip. Includes grades 302, 304 and 430.
- Precision shim sheets allow you to fill small gaps and ensure precise fitting of components, preventing wear and tear, make very small adjustments to the alignment or spacing of parts in machinery and other assemblies.
- This product is meant for engineering applications not decorative applications. NOTE! Very thin sizes may experience some bending or indentations.
- Includes K&S Metals range and more
Product Data
- Thickness (t)
:
0.635
mm
+/- 0.051
(Equiv. 0.025 in.) - Width (w)
150
mm
+/- 0.127
(Equiv. 5.906 in.) - Length (l)
300
mm
+ / - 0.127
(Equiv. 11.811 in.) - Pack Size Single Sheet
- Grade 430
- Material Stainless Steel AISI 430
Product Compliance and Data
Additional Resources
Cross References
- KSE KS87185
