STR-050-0127-0500-CST - Datasheet
MBA
Category Information

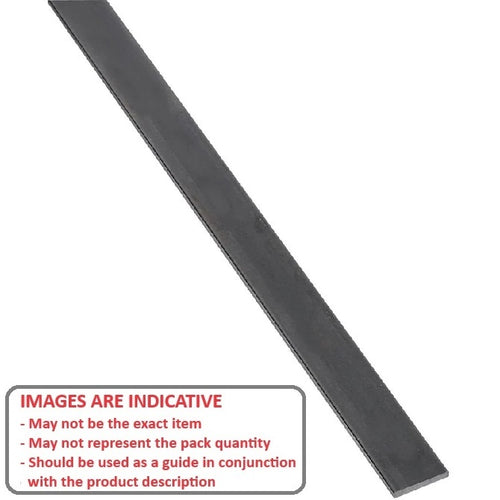

Strip - Spring SteelSpring Steel Strip. Hundreds of uses.
- An expanded range may be available on special order. Please enquire.
- Hardened and tempered spring steel strip
- Note that the width of this strip may vary up to a few mm as it is guillotine cut from sheet
- If you require a closer tolerance on the strip width please contact us prior to ordering

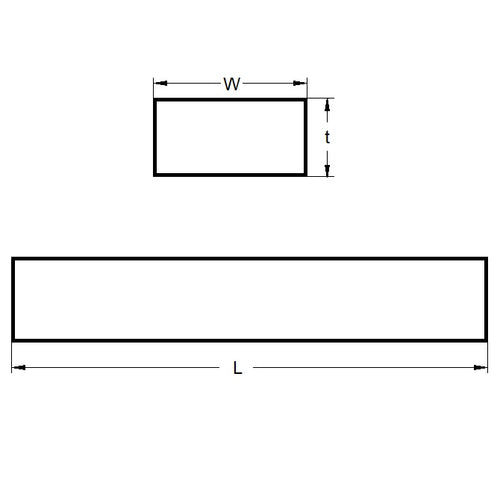

Product Data
- Thickness (t)
:
0.50
mm
+/- 0.026
(Equiv. 0.02 in.) - Width (w)
12.7
mm
+/- 1.0
(Equiv. 0.5 in.) - Length (L)
500
mm
Minimum
(Equiv. 19.685 in.) - Description Strip
- Grade SAE1074
- Typical Hardness 44-55 RC
- Material Carbon Spring Steel
