BL-00058-FS-G25 - Datasheet

MBA

Category Information

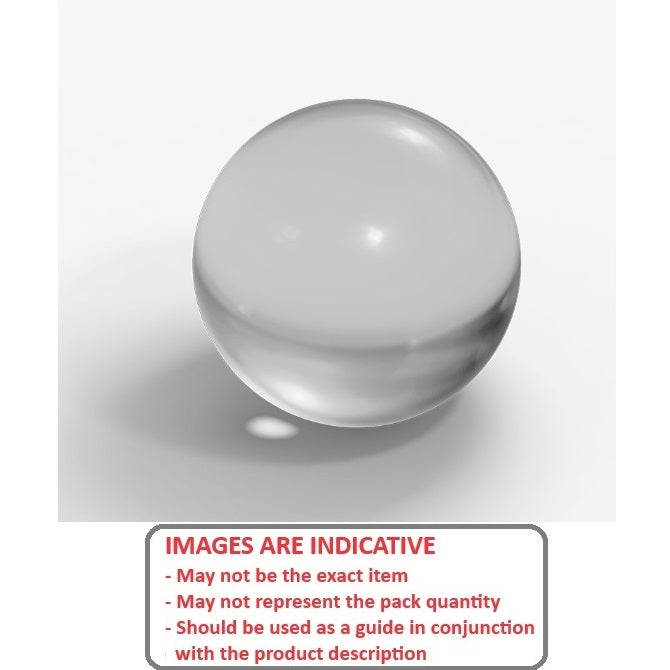

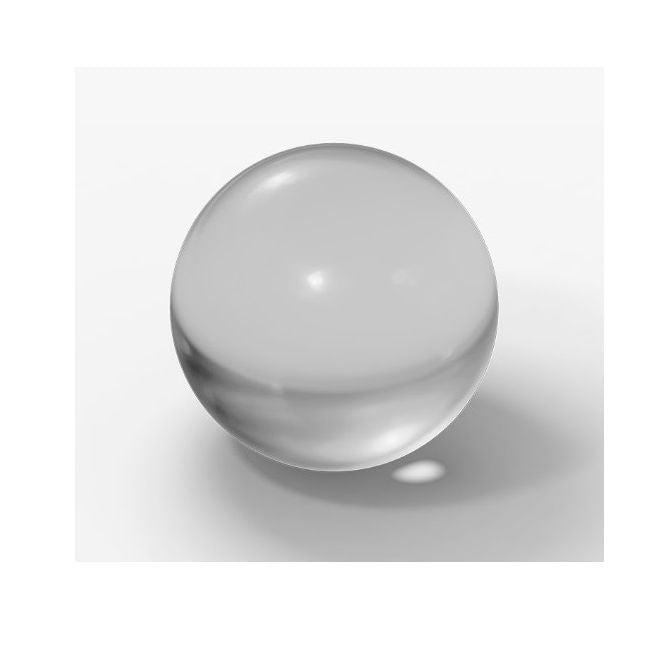

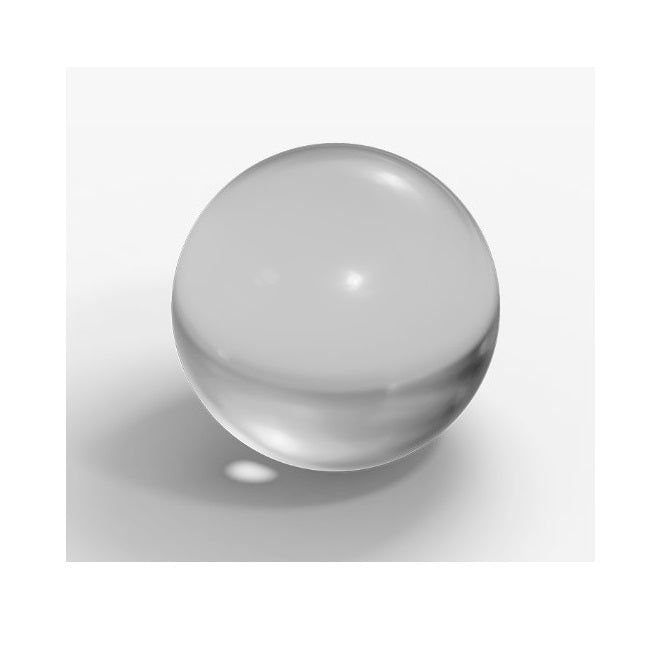

Balls - Glass - Fused Silica - Clear

Clear Fused Silica Glass Balls. Low index of refraction, supporting high temperatures. SIO2 synthetic quartz.

  • Glass balls are versatile components that find various engineering uses across different industries.
  • Some common uses include valves, gauges, spray nozzles, balls in low impact type ball bearings made from plastics, aerospace applications, temperature sensing, and decorative applications.
  • Max working temperature 950 C.
  • Excellent electrical insulator
  • Tensile strength 500 kg / sq.cm, compressive strength 11300 kg / sq.cm.
  • Good chemical resistance
  • Flexural strength 680 kg / sq.cm.

Product Data

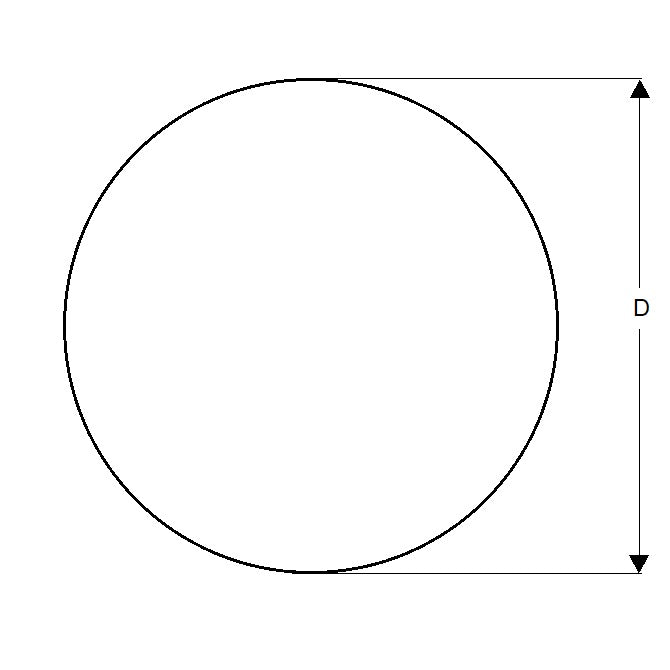

  • Diameter (D) : 0.579 mm +/- 0.00254
    (Equiv. 0.023 in.)
  • Material Fused Silica
  • Precision AFBMA Grade 25
  • Hardness 500 kg / sq.cm
  • Colour Translucent
  • Specific Gravity 2.203
  • Ovality +/-0.000635
  • Material Fused Silica
Country of Origin: US
