SHM-0508-0305-0610-AL - Datasheet

MBA

Category Information

Shim and Foil - Aluminium

Aluminium Shim and Foil. Precision aluminium shim sheet selection. Includes grades 1100, 3003, 6061-T6 and commercial grade.

  • Precision shim sheets allow you to fill small gaps and ensure precise fitting of components, preventing wear and tear, make very small adjustments to the alignment or spacing of parts in machinery and other assemblies.
  • This product is meant for engineering applications not decorative applications. NOTE! Very thin sizes may experience some bending or indentations.
  • Coloured shim is anodised. The colour is not removable. The colour is for identification purposes only.
  • Includes K&S Metals range and more.

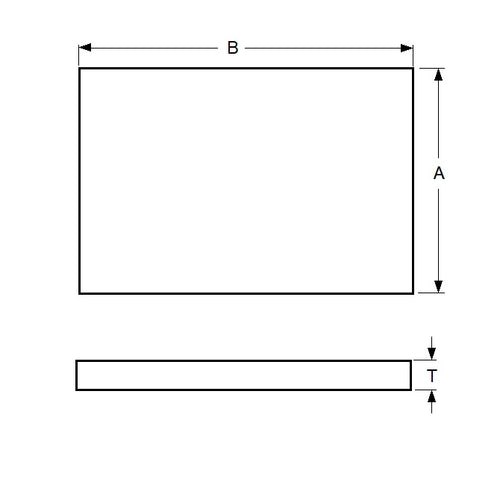

Product Data

  • Thickness (t) : 0.508 mm
    (Equiv. 0.02 in.)
  • Width (w) 304.8 mm
    (Equiv. 12 in.)
  • Length (l) 609.6 mm
    (Equiv. 24 in.)
  • Pack Size Single Sheet

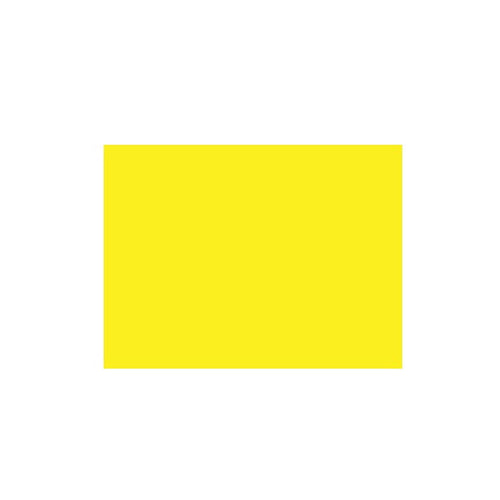

  • Colour Yellow
  • Grade 3003
  • Material Aluminium 3003
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 9536K78
  • S77A3Y-020SET
  • S77A3Y020SET
