CBLU-046-304-77 - Datasheet
MBA
Category Information
Cable and Accessories - Cable - Miniature - UncoatedUncoated Miniature Cable Cable and Accessories. Lengths will be supplied continuous to a maximum of 3mtrs (ie, 10 x 300mm supplied as 3mtr length)
- An expanded range may be available on special order. Please enquire.
- Sold per length. Multiple quantities will be supplied in a continuous length up to 3mtr maximum.
- Also called bowden cable.
Product Data

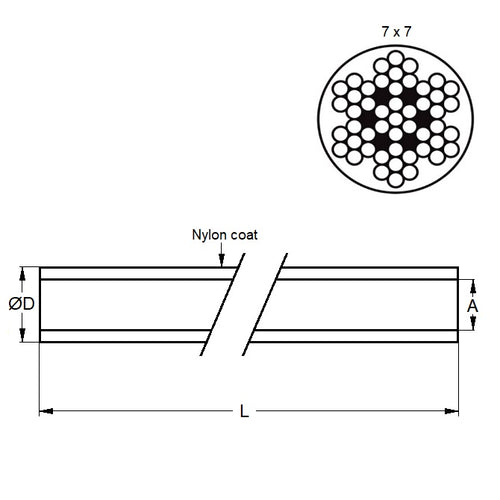

- Overall Diameter : 0.46 mm
- Cable Diameter (A) 0.457 mm
- Breaking Strength 18.1 kg
- Length 30 Mtr Roll
- Strand Type 7x7
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 3461T31
- Reid Tool® CBL-7
- CBL7
